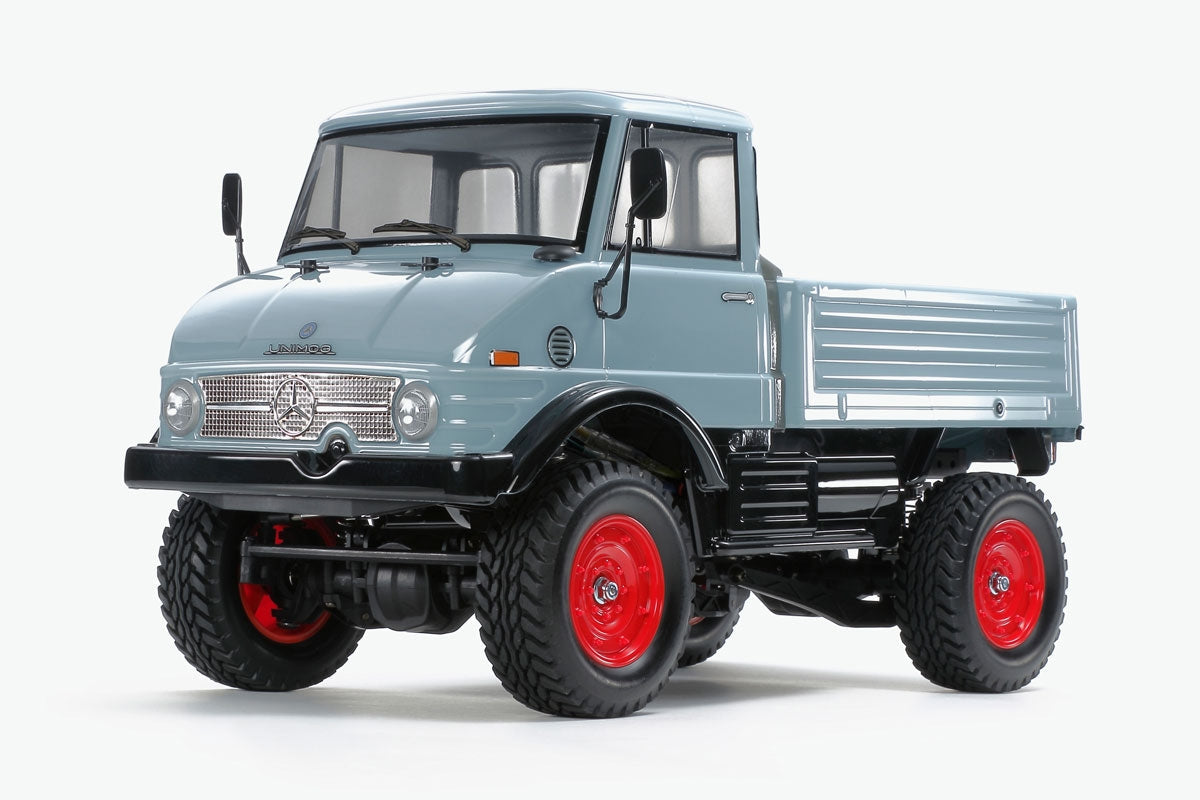

Tamiya Mercedes-Benz Unimog 406 CC-02 1/10 4WD Scale Truck Kit is a scale replica of the multi-purpose Mercedes-Benz Unimog. The full scale "Mog" is a truck that delivers unrivalled off-road performance. The 406 model allows the ability to equip approximately 3,000 different attachments for every imaginable task - making this a truck that can be built in a multitude of configurations. Now, this full scale power house can be had with the proven Tamiya CC-02 chassis.
CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with red wheels and grippy block pattern tires.
NOTE: Finished kit shown in photos is for illustrative purposes only. This is a kit that requires assembly. See needed to complete list below for a list of items required to complete the model.
Features:
- 1/10 R/C model assembly kit
- Polycarbonate body with separate parts included for side mirrors and fuel tank, plus a metal-plated front grille and emblem
- Includes block pattern tires, and red ABS wheels with a depiction of bead lock designs
- Propeller shafts (short: 76mm) included
- The CC-02 chassis is designed for a wide range of off-road scenes including rocky terrain, and its ladder frame is inspired by full-size vehicles and is the base for its superior durability
- A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear
- Includes 540-brushed type motor
- Includes TBLE-04S ESC, Compatible with sensored brushless motors of 21.5 turns and higher, and brushed motors 25 turns and over
Specifications:
Length: 384mm
Width: 196mm
Height: 224mm
Wheelbase: 242mm
Adjustable Gear Ratio: Yes
Bearings: Plastic bushings & Metal bearings
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: FRP Fiberglass Reinforced Plastic
Chassis Type: CC02
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: 4-Link Rigid Suspension (Front & Rear)
Terrain Use: Multi-Purpose
Needed to Complete:
- 2-channel radio
- Servo
- ESC
- 7.2 volt battery & compatible battery charger
- Polycarbonate paint for body
